Ubiqconn VT1020-HRD Rugged IP66 TabletPC (10.4" 1000nits, Intel Atom Quad-core, 4GB RAM, 64GB SSD, WLAN/BT/GPS/2xCAN-BUS, Defroster)

PRODUCT IS CURRENTLY NOT AVAILABLE !

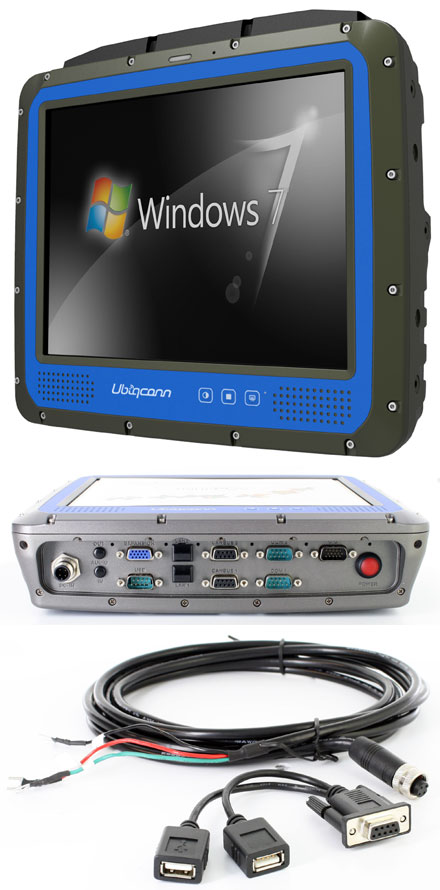

Ubiqconn VT1020-HRD Rugged IP66 TabletPC (10.4" 1000nits, Intel Atom Quad-core, 4GB RAM, 64GB SSD, WLAN/BT/GPS/2xCAN-BUS, Defroster)
3D 360° View
  • Sunlight-readable !
  • IP66 Sealing !
  • Wide temperature range !
  • 2xLAN, 2x Serial, 2x CAN !

This TabletPC has an enormous power- and functionality density and is useable for a wide range of applications (eg. CarPC, input terminal, POS, ...)

The PC is equipped with a Intel Bay-Trail Atom Quad-Core 1.91Ghz CPU. The internal Lithium-Ion battery enables a usage duration of up to 3.5 hours.

For communication the device already is equipped with 2x Gigabit LAN, Bluetooth and WLAN. The integrated GPS receiver enables positioning and navigation.

RAM and 2.5" drive slot are located on the rear side behind easily accessable service slots.



Share

CPU Intel Bay Trail Atom E3845 Quad-Core 4x 1.91Ghz
Memory 1x DDR3L SODIMM slot (8GB max.) behind service door (4GB preinstalled)
Storage 1x 2.5" SATA slot behind service door (64GB SSD preinstalled)
Display 10.4" (Native resolution 1024x768)
1000 nits sunlight-readable (MIL-L-85762A)
Hyper dimming to 0.1nits for night mode operation
Support auto-dimming
70.000 hrs backlight life
Touchscreen 5-wire resistive
Enhanced anti-reflection coating
Defrost/Defog function
Audio Built-in dual speakers
Sensors Built-in 3-axis G-sensor
Expansion 3x Mini-PCIe slot (1x occupied by WLAN/BT)
WLAN/BT Intel 7260 WLAN/BT Mini-PCIe card preinstalled
802.11 a/b/g/n/ac, Bluetooth V4.0
GPS Integrated GPS receiver
WWAN GPRS/HSPA/LTE/etc.. with optional Mini-PCIe module
Antennas Integrated antennas for GPS, WLAN/BT, WWAN
plus external antenna connectors 1x GPS, 2x WLAN/BT, 2x WWAN
I/O 1x RS232 (0/5/12V power support)
1x RS422/485 (3KVrms isolated, auto flow control, NMEA0183 physical layer)
2x USB 2.0
2x Gigabit LAN RJ45 (teaming/redundant function support)
4x Digital I/O (3KVrms isolated)
2x CAN-BUS (2.5KVrms isolated, NMEA 2000/SAE J1939/OBD-II support)
1x Audio output jack
1x Line-In/Mic jack
4x video input (optional)
Function button 1x programmable button
1x brightness/dimming button
1x defrost/defog button
OS Support Windows 7, Windows 8/8.1, Linux
Enclosure Die-cast Aluminium alloy, fanless design
VESA 75/100 mounting holes
Dimensions 276(W) x 252(H) x 67.3(D) mm
3.8kg
UPS battery 3000mAh, 7.4V
Operating temperature range -30° to 55°C
Humidity 5-95%, non condensing
IP Rating IP66
Shock/Vibration
MIL-STD-810G
Power input
Wide range isolated 18~60V (9~36V optional)
Ignition sense auto start/stop function
Remote power on, wake on SMS/RTC
Scope of supply - VT1020-HRD 10.4" Rugged Tablet PC
- 1x power cable (plus, ignition plus, minus)
- 1x USB adapter cable
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
