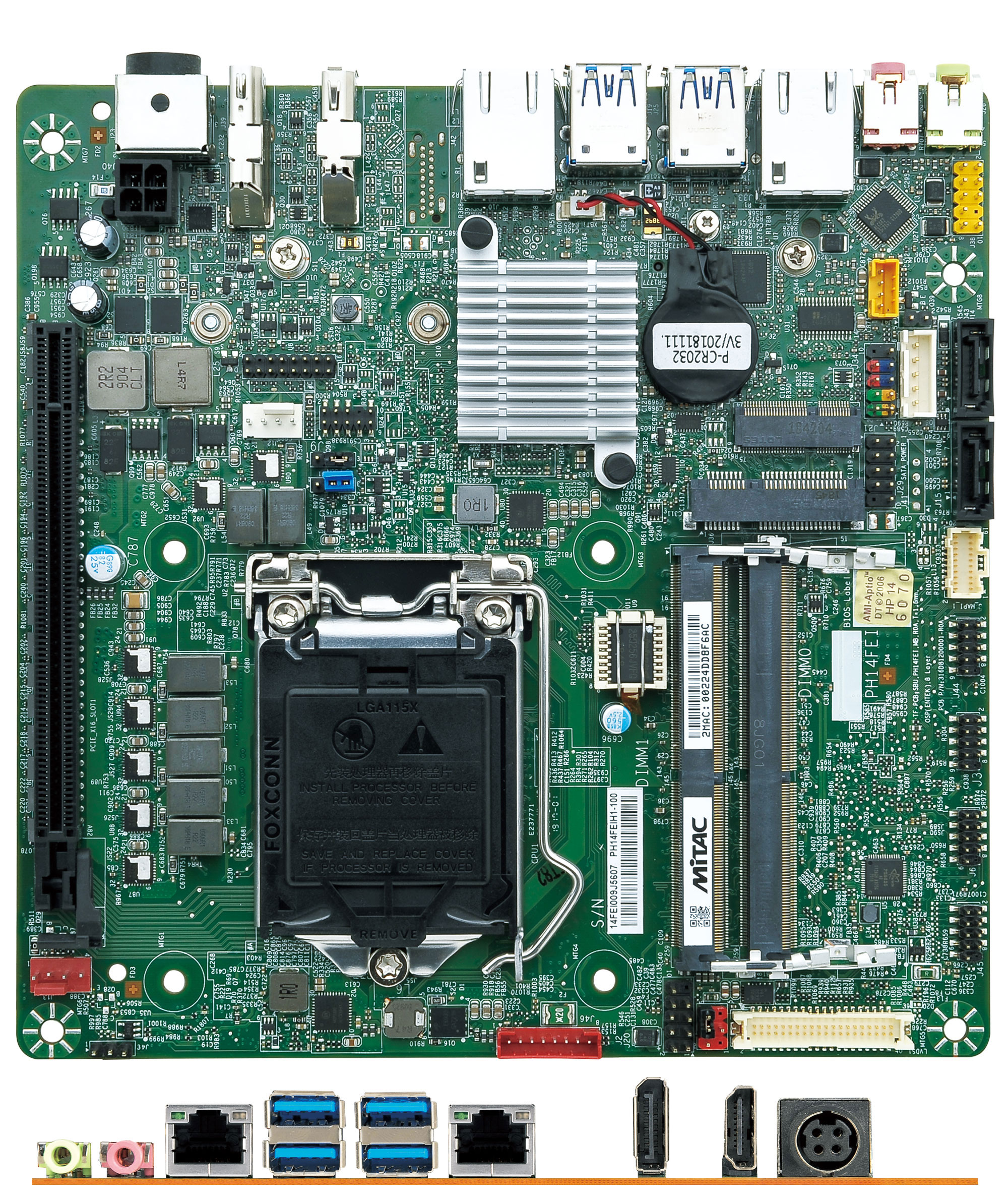

Mitac PH14FEI-H310-12V Thin-ITX (Intel H310, LGA1151 Coffee Lake)

Mitac PH14FEI-H310-12V Thin-ITX (Intel H310, LGA1151 Coffee Lake)
  • 2x Gigabit LAN !
  • 12VDC power input !
  • 2x m.2, 1x miniPCIe !
  • 5 phase power design !

  • Up to Intel® Coffee Lake-R 9th i9 35W & 8th i7 95W (6 cores) LGA processor
  • Intel® H310/Q370 Chipset
  • Intel® vPro technology support (Q370)
  • 2 x DDR4 SO-DIMM up to 32GB
  • 5 phase power design
  • Support triple display for HDMI, DisplayPort and LVDS/eDP
  • 1 x M.2 M 2280, 1 x M.2 E 2230, 1 x mPCIe Full size, 1 x PCIe X16
  • 2 x Intel® Gigabit Ethernet
  • DC-in 12V (Optional: 12~24V SKU)


Share

219.00 EUR
incl. 19% VAT, plus shipping
In Stock (3 pcs)

Add to cart
PH14FEI (PH14FEI) Specifications
MECHANICALFORM FACTORMini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
SYSTEMPROCESSOR9th & 8th Gen Intel Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 95W, Core i9 8-core TDP Max 35W
CHIPSETIntel® H310 / Intel® Q370 (Support RAID 0 / 1 & vPro)
SYSTEM MEMORYDDR4 2666MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
GRAPHICSIntel® HD Graphics
ETHERNETIntel® I219-LM Giga LAN + Intel® I210-AT Giga LAN
I/O CHIPSETNuvoton NCT6116D
AUDIORealtek® ALC662
TPMTPM Header
EXPANSION SLOT*H310 only support M.2 SATA SSD / PCIe 3.0 X16 slot / M.2 2230 E key (PCIe, USB 2.0) / M.2 2242 / 2280 M key (PCIe, SATA) / Mini PCIe Full size (PCIe / USB / SATA)
BIOSAMI BIOS / 256 Mbit SPI
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
GRAPHICS2nd DISPLAYPORT Up to 4K (4096 x 2304) @60 Hz
VGA-
DVI-
HDMIUp to 4K (4096 x 2160) @30 Hz
DISPLAYPORTUp to 4K (4096 x 2304) @60 Hz
LVDSUp to 1920 x 1200 @60 Hz
eDP (Option)Up to 4K (4096 x 2304) @60 Hz
REAR I/OUSB4 x USB 3.0 (H310) / 4 x USB 3.1 Gen 2 (Q370)
DISPLAY I/O1 x HDMI 1.4 / 2 x DisplayPort 1.2
AUDIO I/O1 x Mic-in / 1 x Line-out
LAN I/O2 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERSDC-in 12V(DIN 4-pin)
INTERNAL CONNECTORSSTORAGE2 x SATAIII
USB5 x USB 2.0 (Q370) / 4 x USB 2.0 (H310)
DISPLAY I/O1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
AUDIO I/O1 x Stereo Speaker Header
SERIAL PORT4 x RS232 (Two supports RS232 / 422 / 485 select by BIOS)
PARALLEL PORT-
GPIO1 x MiAPI Header (Programmable. Support 10-bit GPIO)
FAN1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER1 x AT / ATX Mode Select Jumper / 1 x 4-pin ATX Power Connector
OTHERS1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out) / 1 x panel power select header / 1 x backlight power select header, / 1x buzzer header
POWER REQUIREMENTPOWER INPUT*optional 12V-24V via DC to DC power board / DC-in 12V(DIN 4-pin)/ ATX 4-pin 12V
ENVIRONMENTALOPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKING LISTPACKAGE1 x Motherboard / 1 x 50 cm SATA Cable / 2 x I/O Bracket (Half and Full Height) / 1 x Driver CD / 1 x Quick Installation Guide
